🎛️ PWM / Modbus Control Cable for Spindle Kits, Systems, and ATC's

🎛️ PWM / Modbus Cable for Spindle Systems

Precision Connectivity for Reliable Spindle Control

Whether you're setting up PWM or Modbus control for your VFD, this is the high-quality cable you need to complete your spindle installation with confidence.

We've done the hard work—sourcing top-tier components and testing each configuration across the most popular CNC machines—to deliver a plug-and-play cable that’s tailored to your system.

🔌 What’s Included

12 ft Shielded Control Cable
- Terminated with high-quality connectors for both your CNC controller and VFD
- Designed specifically for low-noise, high-signal integrity
- These are a physically shielded cable. For optimal EMI performance, the shield must be grounded properly at the controller or VFD end.

🧩 Compatible Controller Options

We’ve prebuilt connectors for the most popular CNC brands:

🔧 PWM & Modbus Cables Built for These Machines:

CNC Controller	Connector Configuration
Fox Alien	JST-XH → GX12 6-Pin
AVID CNC	AMP 14-Pin → GX12 6-Pin
Shapeoko 3/4/Pro	Molex → GX12 6-Pin
Shapeoko 5 Pro	GX12 6-Pin → GX12 6-Pin Pigtail
Onefinity (BlackBox)	Modbus Female Breakout Board → GX12 2-Pin
Onefinity Elite	GX12 6-Pin → GX12 6-Pin
LongBoard	Generic Ferrules + Digital PWM Converter → GX12 6-Pin
Super LongBoard	Modbus Ferrule Leads → GX12 2-Pin
PwnCNC ATC Pneumatics Enclosure	GX12 5-Pin → GX12 5-Pin

🛠️ For Other Machines:

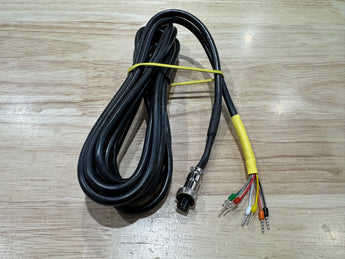

Generic Ferrule Leads → GX12 6-Pin
GX12 6-Pin Inlet Cable (18") → GX12 6-Pin

Choose the style that fits your installation needs:
➡️ Attached cable for permanent installs
➡️ Detachable option for modular setups

⚠️ Notes

Current connector options: GX12 6-Pin (PWM), GX12 5-Pin, GX12 2-Pin (Modbus)

📚 Need Help?

We’ve compiled detailed guides for many CNC controllers in our Knowledge Base. Still unsure which configuration you need? Contact us and we’ll walk you through it.
