Mean Well LRS-350-36 Power Supply – 36VDC, 9.7A, 349.2W
CNC Clearance Sale Item
This item is included in our CNC clearance sale as we make room for updated products and current inventory.
Availability is limited, and this product may not be restocked once sold out.
Please confirm compatibility before ordering. Clearance sale items are final sale unless defective.

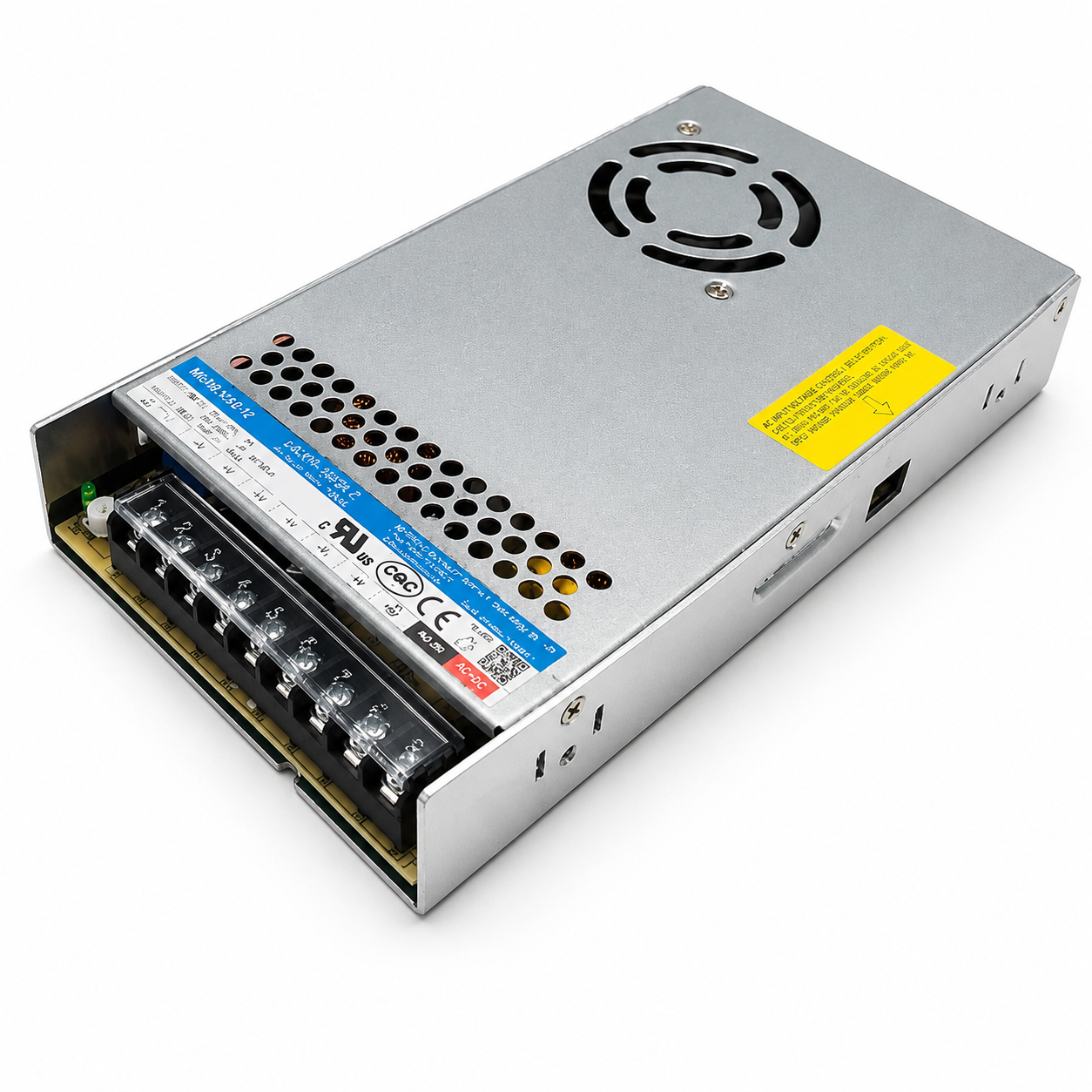

Mean Well LRS-350-36 Switching Power Supply
36VDC output • 9.7A maximum current • 349.2W rated power
The Mean Well LRS-350-36 is a high-output industrial switching power supply well suited for CNC motion systems, especially installations using multiple closed-loop stepper motors. PwnCNC received these units directly through MASSO, and they are a strong fit for MASSO-based control systems, Advanced Conversion Kits, and custom CNC retrofits requiring dependable 36VDC power.
Key Features
- Regulated 36VDC output: Provides stable power for compatible CNC motion-control hardware.
- 9.7A output current: Delivers up to 349.2W for multiple closed-loop stepper motors and related control equipment.
- Selectable AC input: Supports 90–132VAC or 180–264VAC, plus 240–370VDC input.
- Built-in cooling fan: Helps manage heat during higher-load operation.
- Integrated protection: Includes short-circuit, overload, over-voltage, and over-temperature protection.
- Industrial enclosed chassis: Designed for mounting inside CNC control cabinets and electrical enclosures.
- Regulated output: Maintains stable voltage for reliable machine operation.
Specifications
- Manufacturer: Mean Well
- Model: LRS-350-36
- Series: LRS-350
- Product type: Enclosed switching power supply
- Output voltage: 36VDC
- Output current: 9.7A
- Rated output power: 349.2W
- Number of outputs: 1
- AC input voltage: 90–132VAC or 180–264VAC
- DC input voltage: 240–370VDC
- Input frequency: 47–63Hz
- Isolation voltage: 3.75kVAC
- Load regulation: Regulated
- Mounting style: Chassis mount
- Case style: Enclosed
- Dimensions: 215 × 115 × 30 mm (8.465 × 4.528 × 1.181 in)
- Approximate weight: 1.676 lb
- Compliance: UL60950-1
- RoHS compliant
Ideal For
- MASSO closed-loop stepper motor systems
- Custom CNC routers, mills, and machine retrofits
- Multi-axis motion-control systems
- Industrial automation and 36VDC control applications
Installation Notes
This is a chassis-mount power supply intended for installation inside a suitable electrical enclosure. Confirm the input-voltage selection before energizing the unit. Verify total system current draw and provide proper grounding, branch-circuit protection, ventilation, and safe mains wiring. Installation should be completed by someone familiar with AC line-voltage electrical work.
