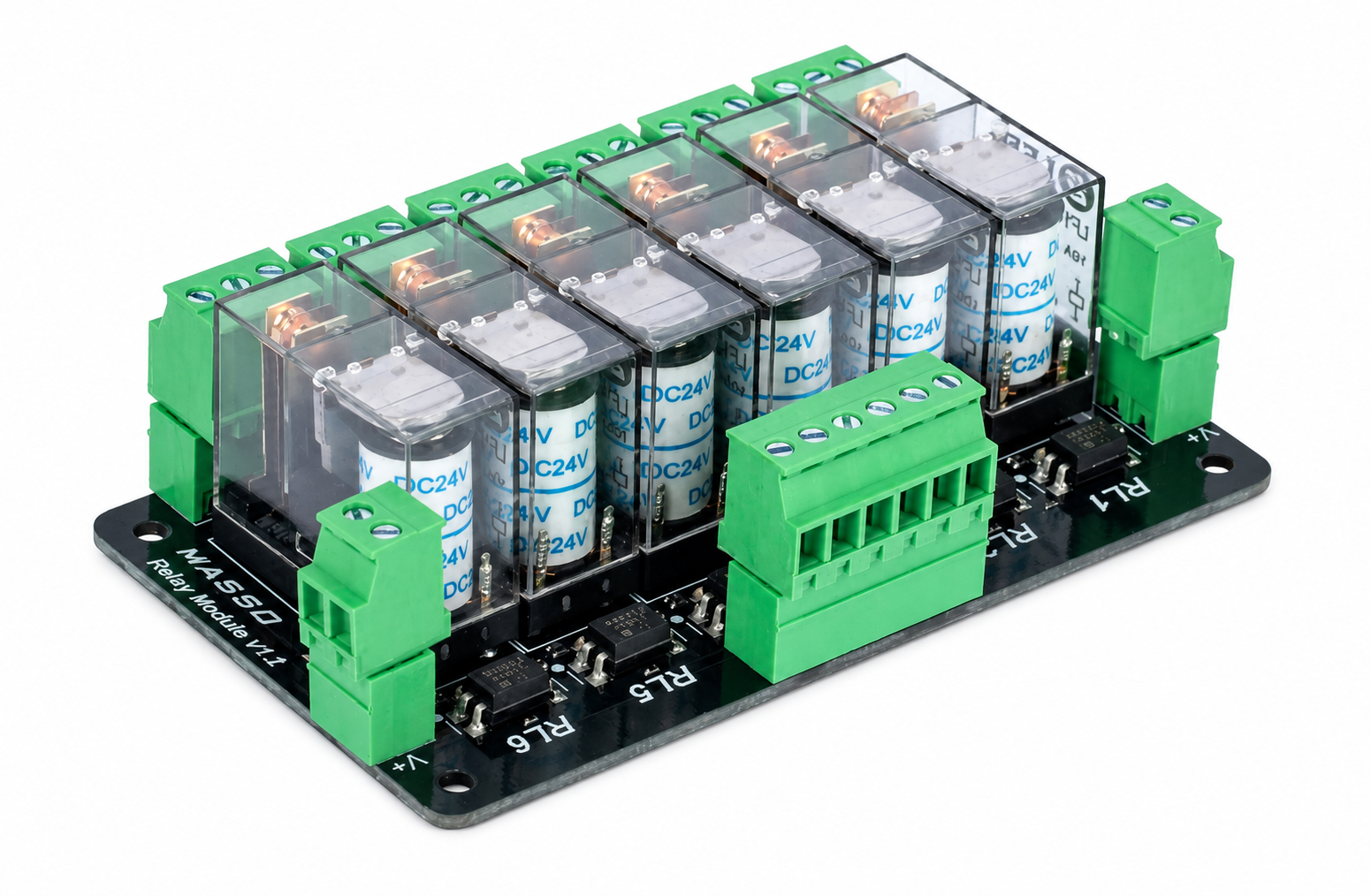

🔌 MASSO 6-Relay Module

Reliable Signal Control • Optical Isolation • Built-In Diagnostics

Take full control of your machine’s accessories with the MASSO 6-Relay Module, engineered for safe and efficient switching of high-voltage/current components. Designed specifically for use with the MASSO controller family, this compact and intelligent relay board features optical isolation for safety, multi-color LED status indicators, and support for both DC and AC loads—making it the ideal accessory interface.


✅ Key Features:

  • Optically Isolated
    Protects your MASSO controller and other low-voltage components by safely isolating high-voltage signals.

  • Advanced Diagnostics with Multi-Color LEDs

    • Green LED: Signal received and relay successfully switched.

    • Red LED: Signal received, but relay failed to activate—immediate visual cue for troubleshooting.

  • Flexible Power Handling
    Each of the 6 relays can independently control up to:

    • 5 Amps @ 28VDC

    • 5 Amps @ 240VAC

  • Single Power Source
    Operates with a standard 24VDC power supply—no external transformers or converters needed.

  • Compact & Mountable
    Includes easy-mount M3 screw holes for quick, secure installation in your control enclosure or panel.


⚠️ Important Notes:

  • Reverse Polarity Warning: Connecting power in reverse will damage the module. Double-check wiring before applying power.

  • Compatible only with systems supplying 24VDC input power.


📦 What's Included:

  • (1) MASSO 6-Relay Module with integrated optical isolation

  • Built-in diagnostic LEDs on each relay channel

  • M3 mounting screw holes for enclosure integration


🛠️ Wiring & Setup Guide:

Click here to view detailed instructions


Whether you're switching dust collectors, coolant pumps, vacuum tables, or lighting systems, the MASSO 6-Relay Module offers a robust, easy-to-troubleshoot solution to automate your CNC accessories with total confidence.
