VFD Keypad Mount

$15.00

Shipping calculated at checkout.

Color: Yellow

Yellow Black

Product variants

Quantity

If you're choosing to relocate your VFD's keypad for more convenient access... then these mounts might come in handy.

Keypad Mounts come in a variety of types and growing.

Surface Mounts screw onto a flat surface and require a simple 1" hole for the extension cable to pass through.
Flush Mounts can be added to a flat board to provide a simple place to insert the keypad. This is perfect if you're adding other controls to a whole CNC Panel.
Masso Touch Mount includes hardware to be screwed onto the rear of your Masso Touch. Allowing the keypad to be as close as possible to the main controls of your Masso Touch controller.

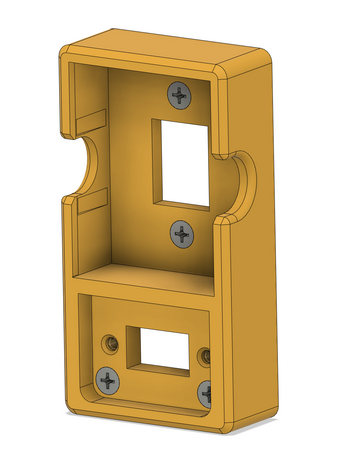

Surface Mount + Manual Override Switch (MOS) are for those who already have a Masso Touch Mount or want to mount their keypad on a flat surface to be used with the V5 VFD.
Masso Touch Mount + MOS - Our V5 VFD Enclosures have a cool feature of having a movable Manual Override Switch port. This option provides you a place to mount this right below your VFD keypad right next to your Masso Touch controller.

Requires a VFD Keypad Extension Cable and is available in 3, 6, 9, & 12' segments.

MOS Keypad requires MOS Extension Cable and comes in 3, 6, 9 & 12' segments.

For more information or 3d side by side comparisons visit our KB section on VFD Keypad Mounting options.

VDF keypad mount

Yellow VFD keypad mount too tight fix inside

Great Product

I am so grateful to PWNcnc for their innovations, their products, their quality and GREAT customer support

VFD Keypad Mount

It is well made and of high quality. i can not say how well it works, i don't have the ATC system yet.

Well built

Works great! Very clean build;

More thought should have went into the design.

Extremely difficult to insert the remote VFD control panel into the yellow mount.

If you plan on leaving the VFD control panel permanently installed then this is probably not a factor. If this assembly is being installed on a Masso Touch, the assembly sits shallow to the Masso making it impossible to remove VFD control panel because you cannot a good grip. Add in the piece of being difficult to insert the VFD controller, you'll need to push the controller out of the yellow assembly from the rear by pushing on the CAT 5 plug.
